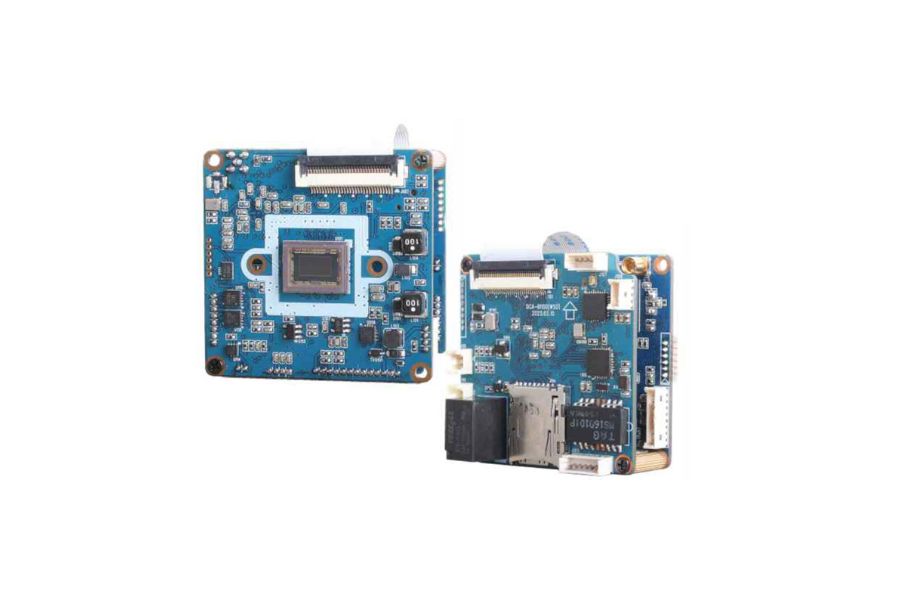

- 1/2.8″ 2.9μm Pixel Progressive Sony Starvis CMOS Sensor
- 2 Mega Pixels – Maximum 1080p (1920×1080)
- Mountable Lens: Fixed & DC IRIS & AF Motorized Lens
- Onvif Ver. 17.06 Compatible
- Module size 42x42mm 2-boards

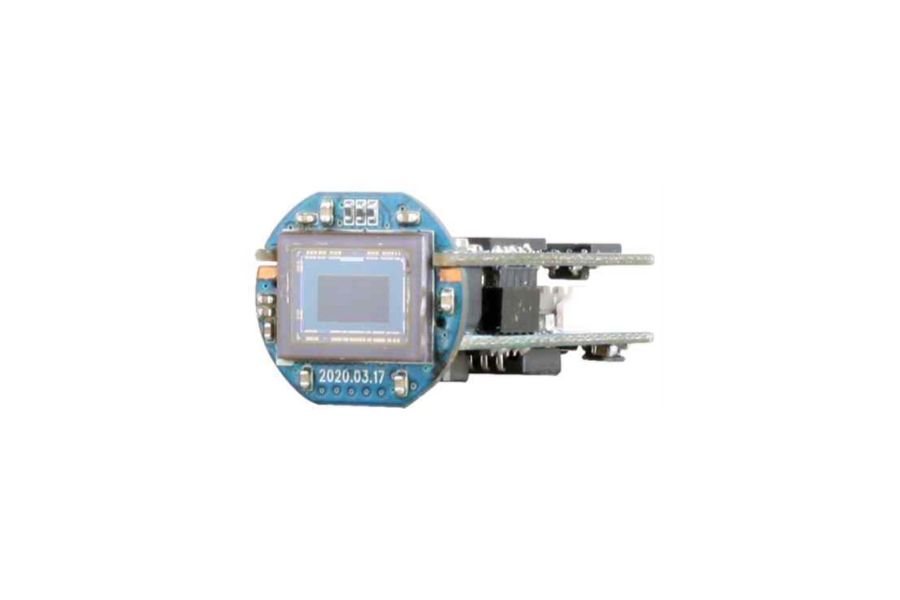

- 1/2.8″ 2.9μm Pixel Progressive Sony Starvis CMOS Sensor
- 2 Mega Pixels – Maximum 1080p (1920×1080)
- Mountable Lens: Fixed IRIS Lenses with miniature camera housings
- Onvif Ver. 17.06 Compatible
- Video Module 17Ø & etc., 3-boards
Camera Module Board

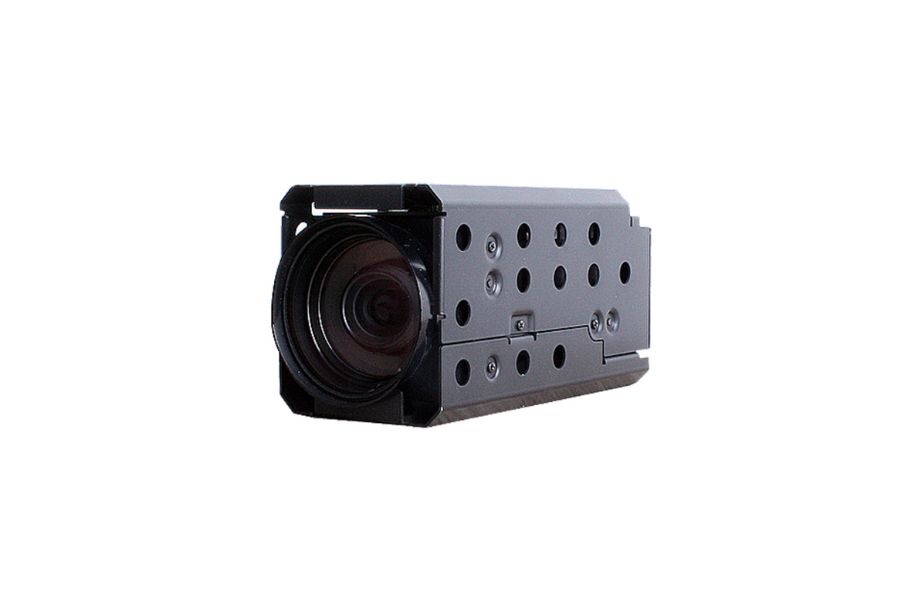

1080p LVDS Interface Color CMOS camera
- 1/2″ 2MP Sony Color CMOS
- Optical 35x Auto Focus Zoom Module (f=6~210mm)
- WDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, DC Auto IRIS, D-zoom, Serial Protocol (Visca)
- OSD Port, RS232C / DC12V

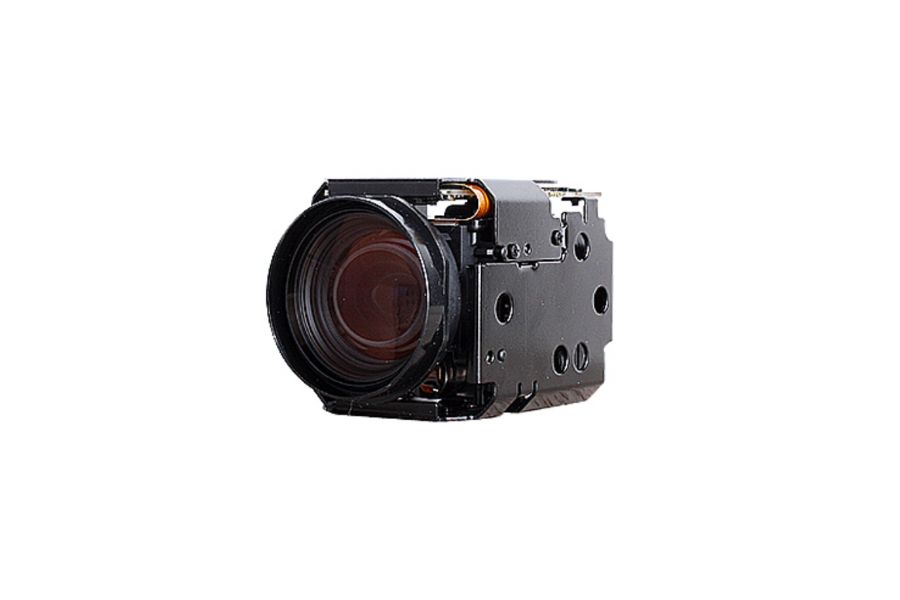

1080p LVDS Interface Color CMOS camera
- 1/2.8″ 2MP Sony Color CMOS – IMX307LQR-C
- Optical 10x Auto Focus Zoom Module (f=4.7~47mm)
- WDR, DSS(Sense-up), 3D-DNR/3DNR, TDN ICR, DC Auto IRIS, D-zoom, Serial Protocol (Visca)
- OSD Port, OSD via UART, RS232C / DC12V
